Introduction:

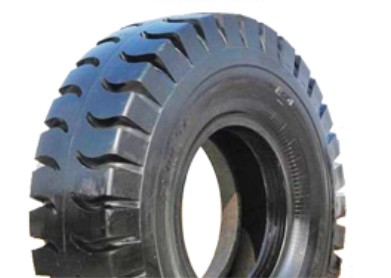

Applicable for short-distance mining tippers. Features deepened pattern, extended service life, rigid tyre body, excellent grinding-resistance and cutting-resistance.

Size	PR	Tread Depth (mm)	Standard Rim	Inflation Tyre  Dimension		Max Load  (KG)				TT or TL
				Section Width	Overall Diameter	Max Speed	Pressure	Max Speed	Pressure
				(mm)	(mm)	60 km/h	Kpa	80 km/h	Kpa
30.00-51	52	69.5	22.00/4.5	820	2942	30000	550	53000	750	TL
33.00-51	58	75	24.00/5.0	895	3057	35500	575	61500	750	TL
